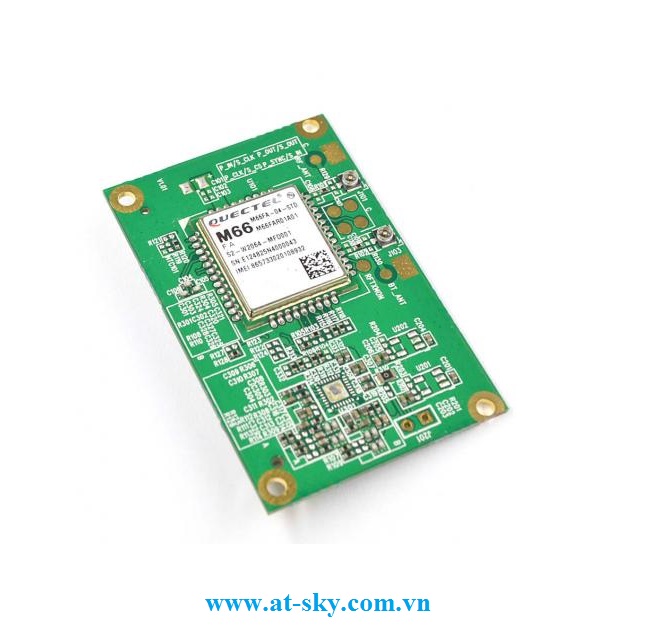

Quectel M66 Breakout Board (M66 TE-A)

M66 TE-A

5274 views

0

Features

0

View detail
Type GSM Module
Frequency band 850/900/1800/1900MHz
Interface 3xUART
Mounting 80pin B2B Connector
Antenna U.FL
GPRS Class 12
Voice YES
SMS YES
Internet protocols TCP/UDP/PPP/FTP/HTTP/SMTP/CMUX/SSL

General Features
  Quad-band 850/ 900/ 1800/ 1900 MHz
  GPRS Multi-slot Class Class 12
  GPRS Mobile Station Class B



Compliant to GSM Phase 2/2+

Class 4 (2W @ 850/ 900 MHz)
Class 1(1W @ 1800/1900MHz)
  Supply Voltage Range 3.3~4.6V 4.0V Typ.



Low Power Consumption

1.3mA @ DRX=5
1.2mA @ DRX=9
  Operation Temperature -40 °C to +85 °C
  Dimensions 17.7 × 15.8 × 2.3mm
  Weight

Approx. 1.3g

  Control via AT commands GSM 07.07 ,07.05 and other enhanced AT Commands

Specifications for Data
  GPRS Class 12 Max. 85.6kbps (uplink & downlink)
  PBCCH Support
  Coding Schemes CS 1, 2, 3, 4
  USSD
  Non Transparent Mode
  Protocols TCP/ UDP/ PPP/ FTP/ HTTP/ SMTP/ CMUX/ SSL

Specifications for SMS
  Point-to-point MO and MT
  SMS Cell Broadcast
  Text and PDU Mode

Specifications for Voice
  Speech Codec Modes Half Rate (HR)
Full Rate (FR)
Enhanced Full Rate (EFR)
Adaptive Multi-Rate (AMR)
  Echo Arithmetic Echo Cancellation
Echo Suppression
Noise Reduction

Interfaces
  SIM/ USIM 3V/ 1.8V
  UART × 3
  Analog Audio Chanel 2 output channels and 1 input channel
  Bluetooth BT 3.0
Profile: SPP, HFP
  ADC ×1
  PCM ×1
  RTC ×1
  Antenna PAD × 2 (One for GSM antenna, the other for
Bluetooth antenna)
