PCIe Gen3x4 standard; NVMe 1.4 specification; HMB technology support; M.2 2280 interface; 128GB, 256GB, 512GB, 1TB, 2TB and additional capacity options

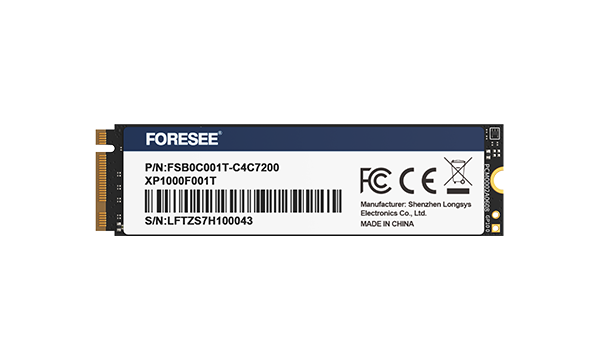

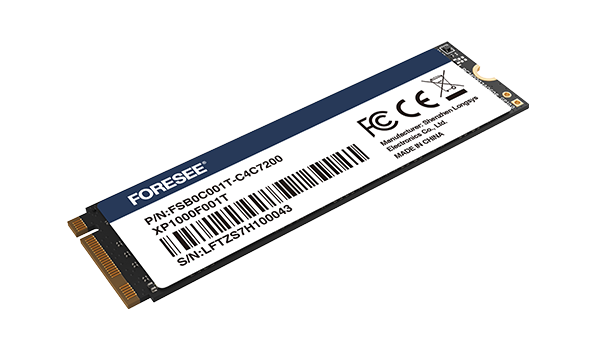

XP1000 PCIe SSD

205 views

  • PCIe Gen3*4 standard

  • NVMe 1.4 specification

  • HMB technology support

  • M.2 2280 interface

  • 128GB, 256GB, 512GB, 1TB, 2TB and additional capacity options

  • Sequential read/write speed up to 3500MB/s/3100MB/s and random read/write rate up to 360K/279K IOPS

Features
  • PCIe Gen3*4 standard
  • NVMe 1.4 specification
  • HMB technology support
  • M.2 2280 interface
  • 128GB, 256GB, 512GB, 1TB, 2TB and additional capacity options
  • Sequential read/write speed up to 3500MB/s/3100MB/s and random read/write rate up to 360K/279K IOPS
View detail
Product Series Capacity Type Model Flash Memory Medium DRAM Operating Temperature Sequential Read/Write Speed* Random Read/Write Speed (IOPS)* Mean Time Between Failures (Hour) Warranty
XP1000 PCIe SSD 128GB M.2 2280 XP1000F128G 3D TLC DRAM-less 0℃~70°C Up to 1690MB/s / 940MB/s Up to 70K / 180K 1500000 3 years
XP1000 PCIe SSD 256GB M.2 2280 XP1000F256G 3D TLC DRAM-less 0℃~70°C Up to 3390MB/s / 1800MB/s Up to 140K / 260K 1500000 3 years
XP1000 PCIe SSD 512GB M.2 2280 XP1000F512G 3D TLC DRAM-less 0℃~70°C Up to 3400MB/s / 2980MB/s Up to 260K / 270K 1500000 3 years
XP1000 PCIe SSD 1TB M.2 2280 XP1000F001T 3D TLC DRAM-less 0℃~70°C Up to 3500MB/s / 3160MB/s Up to 360K / 270K 1500000 3 years
XP1000 PCIe SSD 2TB M.2 2280 XP1000F002T 3D TLC DRAM-less 0℃~70°C Up to 3500MB/s / 3160MB/s Up to 360K / 270K 1500000 3 years
XP1000 PCIe SSD 128GB M.2 2230 XP1000F128G 3D TLC DRAM-less 0℃~70°C Up to 1690MB/s / 950MB/s Up to 70K / 180K 1500000 3 years
XP1000 PCIe SSD 256GB M.2 2230 XP1000F256G 3D TLC DRAM-less 0℃~70°C Up to 3300MB/s / 1860MB/s Up to 140K / 260K 1500000 3 years
XP1000 PCIe SSD 512GB M.2 2230 XP1000F512G 3D TLC DRAM-less 0℃~70°C Up to 3470MB/s / 3000MB/s Up to 270K / 260K 1500000 3 years

Supports TRIM Function and S.M.A.R.T Function.
*Data is sourced from internal testing of Longsys. The actual performance may vary between different devices.

I. Product Advantages

Additional channels and higher Flash FPS bring about high speed performance.
L1.2 low power consumption to achieve lower power consumption and longer service life.
Temperature control algorithm to balance speed and temperature during operation.

II. Application

Laptop, All-in-one machine, Desktop, Home IPC
